„If you wanna start, start big!“ is what Groppioni Paolo (GrP) must have told me in 2008. We were sitting in front of a huge proxy of a synthesizer panel. In fact, the A8 – with 127 x 67 cm – is one of the largest synthesizers ever produced.
It was built 22 times* and has been in studios in the USA, Switzerland, France, Belgium, Germany and Austria since 2010. [*After the production run ended, Paolo built a last GRP A8 for himself. So there are 23 instruments in total in existence.]
Beside its monstruous size, it’s its concept that makes the GRP A8 awe-inspiring. More than that – I believe the GRP A8 has become a milestone in synthesizer history.
While most modern analog synthesizers follow the concept of classic synthesizers, GRP has gone its own way. Fabulous sound is the basis, of course, but on top of this the GRP concept is tremendously flexible. There’s a fantastic intuitive user surface (with knobs instead of patches, so you’re faster), MIDI and (!) CV/gate, delightful performance features including the synchronization of all rhythm-based components (LFOs, S/H, auto-pan, sequencer …), and well … a wonderful – absolutely unique! – step-sequencer.
Overview
The GRP A8 is a dual section analog synthesizer capable of creating two entirely separate sounds. The instrument offers:
-
6x VCOs
-
6x sub-oscillators
-
1x noise (for audio and modulation)
-
2x ring modulator
-
2x 24dB lowpass filters
-
2x 12dB multimode filters
-
2x fixed filter banks
-
8x VCAs
-
4x DAHDSR envelopes
-
3x ADSR envelopes
-
2x VC LFO (with MIDI sync)
-
1x general LFO
-
3x audio-mixer
-
1x sample & hold (with MIDI sync and EG control function)
-
1×16 (2×8) step CV & trigger sequencer (with MIDI sync)
-
1x auto pan module
-
2x portamento
-
reference tone (A=440 Hz)
- 9x audio out rear (Upper R/L, Lower R/L, Main Low R/L, Main High R/L, Mono)
- 6x audio out front (Main Low R/L, Main High R/L, Mono, Phones)
- CV – gate – trigger panel
-
MIDI
Impressive, don’t you think? Although: it’s not about counting oscillators and making you believe that tons of modules guarantee musical flexibility. Of course, the GRP A8 does all that! But the heart of this great musical instrument is its state of the art concept.
Welcome to the beginning of the 21st century …
Is it another Moog 55 clone you’re looking for? If so, then stop reading, you’re on the wrong boat. The GRP A8 is not modular. And thank God for that! All audio- and modulation-routings are pre-patched. No cables hanging around, no spaghetti …! The A8 is a futuristic analog studio system, creating a near-to-perfect performance environment.
Using multi-selection knobs instead of patchcords guarantees a speedy workflow without loosing yourself in a jungle of cables. Generally, the A8 has 11-way switches for modulation purposes. VCO 1, for example, uses LFO 1, LFO 2, VCO 2, VCO 3, VCO 4, VCO 5, VCO 6, S&H, NOISE, EG 7+ or EG 7- as a source for FM. Just select the source you wish and off you go! While this philosophy of a modern patchwork instrument leaves you with, let’s say, 90% of a regular modular synthesizer’s possibilities, it compensates with an sinfully comfortable user interface.
The GRP A8 reminds me a little of the legendary Oberheim Xpander: It gives you practically (well, 85%) as much control over voice architecture as even the largest modular synthesizer can offer – and then adds MIDI, full control over dynamics and synchronization, plus a superb step sequencer. Welcome to the beginning of the 21st century …
Two synthesizers in one
Imagine you with a heavy a 3-VCO (plus, let’s say, 2 sub-oscillators) Moog-like solo sound. Great, precious, analog! Two filters (in serial or parallel), a wide-range LFO (up to 2,2 kHz), three envelopes, a fixed filter bank … enough material to play around with for hours (and days, weeks, …). This is the UPPER section. Now press the start button and let the step sequencer take over control of the (identical) LOWER synthesizer. Jiggling a few knobs gets you a fantastic ring-modulation sound with some shimmering OSC-to-VCF FM. The sequencer-controlled ring-modulation sound follows every single note of the UPPER synthesizer Moog line. Turn on the auto-pan module (in bidirectional mode) and listen to the two sounds going left to right and vis versa. Switch the UPPER filter to velocity control and the LOWER filter to sequencer control. Now turn the LFO 1 modulation of the UPPER VCA to full right and synchronize auto-pan to LFO 1. You’ll also want some dynamic control over the LFO speed, so simply turn its FM CV source to velocity – voilà …! Tons of possibilities!
So now it’s midnight (and everyone’s asleep) and you’re sitting there completely overwhelmed by the instrument’s potential. You haven’t even used sample & hold yet, and none of the two fixed filter banks … ah yes, and there’s noise, of course … and the additional 7th envelope.
While the GRP A8 is a complex analog synthesizer, it’s still very user-friendly! Sure, it takes a couple of days to get familiar with all those functions, but that won’t take forever. Once you’re used to the basic work flow, the musical potential is unbounding. The GRP A8 can be seen as a genuine 6-VCO mono-synthesizer, a flexible two-voice synthesizer with 3 VCOs each, a completely independant sequencer-workstation, a pure MIDI sound-tool, a classic CV/gate controlled machine – or a combination of any of these.
Vintage synthesizer sound and state of the art performance
Most of those great vintage synthesizers and modular systems from the 70s and 80s sound extremely beautiful. But they have their limitations. Either getting them MIDIfied is a nightmare or you can’t synchronize their (usually very basic) step-sequencer easily. There is no way to clock the vintage LFO to any other time based module and connecting a velocity sensitive keyboard might mean 30 minutes (and a few extra modules) to get it running … well … back to the Stone Age!
The GRP A8 offers the same vintage sound as the classic classics: deep, warm, analog. The fully discrete signal path lies at the base of its imposing sound. But the A8 is more than that …
Highlights

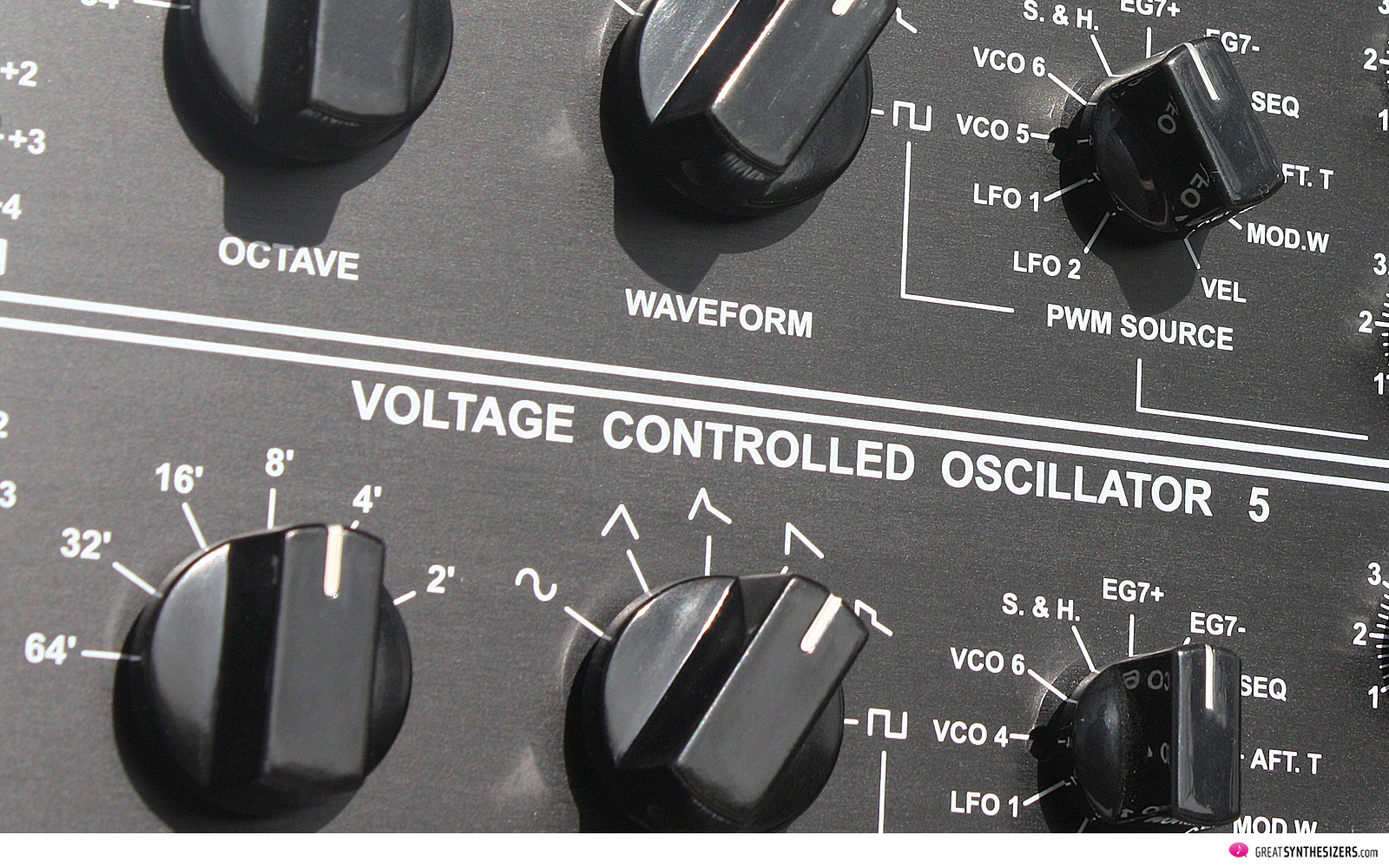

1. Oscillators. 6 VCOs and 6 sub-oscillators are a luxury. Each VCO has 6 waveforms, going from 64’ to 2’. Individual tuning and fine tuning are both possible, of course. PWM may be done by one of the 11 modulation sources (among these: sequencer, aftertouch and velocity). Frequency modulation is possible in two busses: FM 2 uses the two main LFOs while FM 1 has the 11 modulation sources we mentioned earlier (these with comprehensive cross modulation functions). Oscillator synchronization is possible and the keyboard may be disabled for a “static” oscillator frequency. Each VCO has its own sub-oscillator 1 or 2 octaves below initial frequency.
2. Filters. A total of four filters. Each synthesizer unit offers a 24dB lowpass filter (Moog style) and a 12dB multimode filter (Oberheim style) with HP, BP, LP and notch. The filters can be used independently (the 24dB anlone or the 12dB filter), in serial or in parallel. FM is possible via keyboard tracking, sequencer, velocity and an individual FM bus (again, with 11 sources to choose from). Each filter compartment has its own 6-stage envelope (a regular ADSR with delay and hold function).
Keep in mind the A8 is bitimbral, meaning true stereo. Independent sounds (each with panorama control) – with, let’s say, slightly different filter modulation – guarantee impressive musical textures.
The filters are marvellous. I often stick with just one 24dB Moog filter for a meaty and very powerful sound. High filter resonance settings enable unique timbres. This is classic analog pure.
On the 12dB side, I’m especially fond of the notch filter. This is the sound of my Oberheim 4-voice in unison mode. Rare.
3. VC LFOs. The two main LFOs are voltage controlled. Their frequency ranges from „very slow“ (to be honest, it could be even slower) to 2,2 kHz. We’re not talking about static LFOs, since speed modulation is possible by – you’ve already guessed – 11 sources: sequencer, key(board), the “other” LFO, EG (for those Yamaha CS-80 sound effects), modulation wheel, etc. Each LFO comes with its own envelope generator. This controls speed and/or modulation amount: SHAPING, GRP calls it. The EGs are 6-stage (with delay and hold function).
There are 5 waveforms to choose from and LFO synchronization is possible – to GATE (any incoming key information, via MIDI or analog gate), to the “other” LFO, to sequencer or MIDI. Superb.
4. Synchronization. This is what I miss most on vintage analog synthesizers: the possibility to synchronize all rhythm-based (time-based) components. But now we have the GRP A8. LFOs, S/H, auto-pan, envelopes, sequencer… it’s up to you whether you use them individually or synchronized. It’s even more than that: sample & hold, for example, may be used as a clock source, triggering the envelopes. While sample & hold produces stunning sound effects (filter frequency modulation, e.g.), you still don’t want to leave the sequencer unused. So simply set the sequencer clock source to S/H … and there you go. Of course there’s MIDI clock, too … plus the possibility of different clock-divider settings.
5. MIDI. This gets special mention. MIDI plays a very important role in the A8 concept. It provides for dynamic control, for example. We’re familar with velocity-to-filter. But here velocity can also control amplification, oscillator pulse width, LFO speed (!) and LFO shaping (modulation amount). Aftertouch and modulation wheel destinations are VCF (all four filter frequencies), PWM, LFO 1/2 speed, LFO 1/2 shaping, LFO 3 amount.
Each of the A8’s two synthesizer sections has its individual MIDI channel, each has its own pitch bend range and its own portamento time. MIDI clock controls – if desired – LFO 1/2, S/H, auto-pan (via LFO 1) and the sequencer.
6. Sequencer. Well, this is tricky. The A8 sequencer is far more flexible than any analog step-sequencer I’ve ever played. To start with, it has two CV- and two gate-rows. Each gate step may be switched individually to the UPPER or LOWER synthesizer (or to pause). The simplest way to create true stereo patterns is to set the UPPER synthesizer output to LEFT, the LOWER to RIGHT and trigger them alternatively step by step.
The sequencer may be addressed to the 6 oscillators (of course), to the 4 filters and to PWM (upper and lower). Each row (A and B) has a quantizer, if you need tailor-made semi-tones, and each row has glide (as in the days of the good old Korg SQ-10).
STEP REPEAT determines how often each step is played: “x2” doubles each note, there’s also “x3”, “x4” and there are some tricky mathematical formulas: N, N+1 means “note, note +1 step”. There’s also N, N+1, N and N,N, N+1, N. This may sound stupid on paper, but the rhythmical results are dazzling. It’s possible to programme unique patterns miles away from any sequence you’ve ever heard.
Clock selection is INTernal, LFO 1, LFO 2, EXT CLOCK (analog) or MIDI. Not bad at all. Sequencer MODE is either FW (forward), BW (backward), FW/BW, PNDL (pendulum, like FW/BW, without repetition of the 1st/last step), ALTernative (another simple true-stereo pattern method, the sequencer plays row A and B in rotation), RND (random) and GATE. Keep in mind that each MODE can be combined with any of those STEP REPEAT functions listed above …
I like GATE a lot. You hook up an analog or digital device (MIDI or CV/gate), select sequencer mode GATE. And that’s it: the sequencer goes one step ahead with every note played. Connect any workstation and watch the A8 sequencer playing in time once you’ve started the workstation’s song. Or use the great Elka Synthex sequencer as a master clock. It works! Or simply “control” the A8 sequencer in real time … play any keyboard solo and the A8 sequencer operates parallel.
Ah yes, and there’s PW (pulsewidth). Turning the knob far right extends the length of the note, turning far left shortens it. Simple and useful.
Last, but not least there’s a whole bunch of in- and outputs. You can synchronize the sequencer with other analog gear and – this is wonderful – control external monophonic synthesizers (1v/oct) with the GRP sequencer. Well, there is one limitation … but I’ll let you know about that later.
Sound and performance
The GRP A8 is the incarnation of analog sound. It’s a Minimoog, a Prophet-5 (solo voice), an Oberheim … and an ARP-2600. That’s all in there. Deep bass-lines, great brass-sounds, massive lead-lines, exotic FM-sounds, experimental stuff … what more can you wish for? Just check the attached soundfiles carefully. Remember, this is MP3 quality … imagine how stunning the original sound material is!
Great sound quality is one aspect. Wonderful performance another. Together, they make one of the few truely electronic musical instruments on this planet. The A8.
So this is the “perfect” analog synthesizer?
The GRP A8 is very good. It is fantastic. But it is not perfect.
Its four weaknesses …
First, velocity and aftertouch can not be used for oscillator frequency modulation. There are 11 sources for FM, sure. E.g.: each VCO is allowed to cross-modulate with the remaining 5 (!) oszillators. This, in my opinion, is a little exaggerated. A selection of 3 VCOs plus VEL and AFT would have been the better choice.
Second, modulation amount can be increased but not decreased – with a very few exceptions. I would prefer ranges from -5 to +5 instead of 0 to +10. Positive and negative values would allow for easy stereo-filter sweeps with only “one” LFO: for example, by simply setting the UPPER synthesizer filter modulation to +5, the LOWER to -5. The GRP point of view: a value range from 0 to +10 allows more sensitive adjustments. This may be true, but …
Third, there is no way to control the input level of the 24dB and 12dB filter indepentently. There is no real need for this in single filter mode (either 24dB or 12dB only). But in serial and parallel it can in effect be a weakness.
Fourth, the sequencer output (row A and row B CV/gate out) does not merge with incoming MIDI data. Straight talk: key information via MIDI will not be carried to the sequencer (analog) output. Controlling other 1v/oct synthesizers, the GRP sequencer sends plain cv/gate data, but ignores any transpose information you might want to contribute via MIDI. This data merge functions of course inside the GRP, so playing the A8 alone results in this happening automatically.
Most, if not all of these weak points should be erased in a brand-new A8 MKII, but it is questionable whether it will be built or not …
The one and only. A brief story …
Talking about a synthesizer is exhausting and in a way impossible. You can neither describe its sound, nor draw a picture of the instrument’s charisma. You have to play the instrument, you have to hear it, you have to see it in the real … and you have to get a feel for its hardware. So, instead of talking about genuine sound quailities and excellent performance, I’ll tell you a story …
August 2011. I’ve just moved into my new apartment. The projected studio is a room full of keyboard cases and boxes. No problem, chaos is part of everyone’s life. It takes months to set up a complete studio. But I don’t want to be without synthesizers all that time. So, which is the favourite synthesizer and what is the smallest studio I could be happy with?
In a split second I’ve decided for the GRP A8 and Roland JD-800. The A8 covers all (monophonic) analog sound material, the JD-800 adds some polyphonic warmth … and acts as a masterkeyboard, by the way.
After a few hours of making music (producing some of the attached demos and feeling very happy), I stop playing. Surrounded by all those keyboard cases slouching on the floor, housing those great vintage instruments I’ve fallen in love with during the last two decades, I start to have my doubts. Are all these things really necessary? There’s the Minimoog, ARP Odyssey, Sequential Pro-One, Synton Syrinx, Roland System-100, Korg MS-20 and 800DV, Roland SH-5 and SH-7, Yamaha CS-30 and CS-40M, PPG 1002, Oberheim OB-1 and even the ARP-2600. Great instruments, each of them a class in itself. But do I need them for making music? To be honest, the GRP A8 alone is enough! I may have to deny this fact right now (what am I doing with all this vintage stuff?), but in my heart the decision has been made: from the point of music and creativity, there is no monophonic analog synthesizer necessary alongside the GRP A8.
Whether I need Moog-, Oberheim-, Sequential-, ARP-sounds, smashing brass sounds, romantic lead lines, grumbling basses or weird FX-noises: it’s all there. The A8 even produces monophonic FM-sounds with 6 operators (oscillators), in case I happen to be looking for that.
Sure, all vintage instruments have their unique character, their own sound. Only an ARP Axxe is an ARP Axxe (I really love its pulse width modulation). Only a Moog Prodigy is a Moog Prodigy (… colorful sync-sounds!). Only a Korg MS-20 is a Korg MS-20 and only a Yamaha CS-30 is a CS-30. Add another 20 of those synthesizers and you end up with a studio completely covered with analog gear. It’s wonderful, no doubt, but it does not equate musical flexibility. It does not mean you’re free of technical problems. What it means, is a lot of work. Time consuming synchronization problems … extra modules to run the analog synthesizers with a modern MIDI setup … failing instruments needing to be repaired … it’s a never ending story. You spend weeks and months in your studio, but where is the music?
I’m overly sensitive to analog sounds, which is why I have collected well over 100 instruments. For many years there was just no substitute for the great vintage synthesizers. Those days are gone. Now we have (a very few) excellent modern instruments that create the high quality analog sound of bygone days. Take a Synthesizers.com or a Club Of The Knobs modular, for example, … if you’re looking for patchable analog synthesizers. Take a MacBeth M5 … a great machine!
While these synthesizers offer excellent sound quality, their performance standards don’t meet up. I mean musical performance in a modern may. I want MIDI and (!) CV/gate, I want to easily synchronize LFOs and sequencers, I want to have velocity-to-filter control with one click (and not with an extra module, just to get it to run), I want to spend my time making music, not untying patchcords-spaghetti. I want, no, I need the GRP A8. All other analog (monophonic) gear is interesting and useful, but not necessary.
That’s what the music told me. End of story. I continue playing …
GRP A8 MKII ?
Since the 22 A8 instruments are all sold out, GRP possibly (!) plans another production run “somewhen in the future”. Whether the GRP A8 MKII, without those few weaknesses of its predecessor, will become reality or not – we don’t know. But we hope so, of course!
In the meantime you can consider purchasing the new …
GRP A4
This is – more or less – half the A8, including the wonderful sequencer. Production started in 2012. 2016, after 4 years of production (and 180 units that have been sold), the GRP A4 was sold out.
Then Jean-Michel Jarre came into play. He started using the GRP A4 in his music and performed the instrument on stage. Which, of course, had a very positive effect on the GRP A4 production. As of 2023, the GRP A4 is still available, its current price is 5.273 Euros (plus. VAT).
The A4 could be the perfect instrument for many musicians.
-
First, it’s smaller than the A8 (and therefor can be moved and carried around by one person). At 80 x 45 x 25 cm, it’s about the size of the Korg PS-3200 (well, a few centimeters smaller).
-
Second, it offers all the sound potential of the A8 (but, mind you, with one synthesizer part instead of two).
-
Third, the A4 has all the creative modules (as I call them) you’ll need for complex and yet fast performance: high-speed LFOs, ring-modulation, S/H, auto-pan, sequencer, …
-
Fourth, those few weaknesses of the A8 have already been attended to: you’ve got independant level control on both filters, positive and negative modulation ranges, VEL and AFT for VCO modulation, …
-
Fifth, the A4 is a jump ahead the A8 on a few new features:
– loopable envelopes (as on the EMS VCS 3 or EDP Wasp)
– level knobs of the filters control overdrive in single (24dB / 12dB) mode
– AUDIO IN: external audio can be used for signal processing, for ringmodulation, for triggering the envelopes. It also generates a modulation (CV) source useable for VCO 3 FM, frequency modulation on both filters and – excellent – speed control on VC LFO 1. Great.
GRP A4 Layout:
All in all …
As “raw power” instruments, the GRP A8 and GRP A4 are unsurpassed. If you are a) a synthesizer programmer who loves climbing into nearly every aspect of an analog sound, b) a serious sequencer user with a faible for pattern-based electronic music or c) looking for one of the best synthesizers ever made, then these instruments are for you.
GRP A8
Duophonic Analog Studio-Synthesizer
Prices:
GRP A8: approx. 7.900 Euros (2009, 23 units, sold out)
GRP A4: approx. 6.000 Euros (since 2012)
GRP A2: approx. 2.000 Euros (since 2017)
GRP A1: approx. 600 Euros (since 2023)
Website Manufacturer:
www.grpsynthesizers.it
